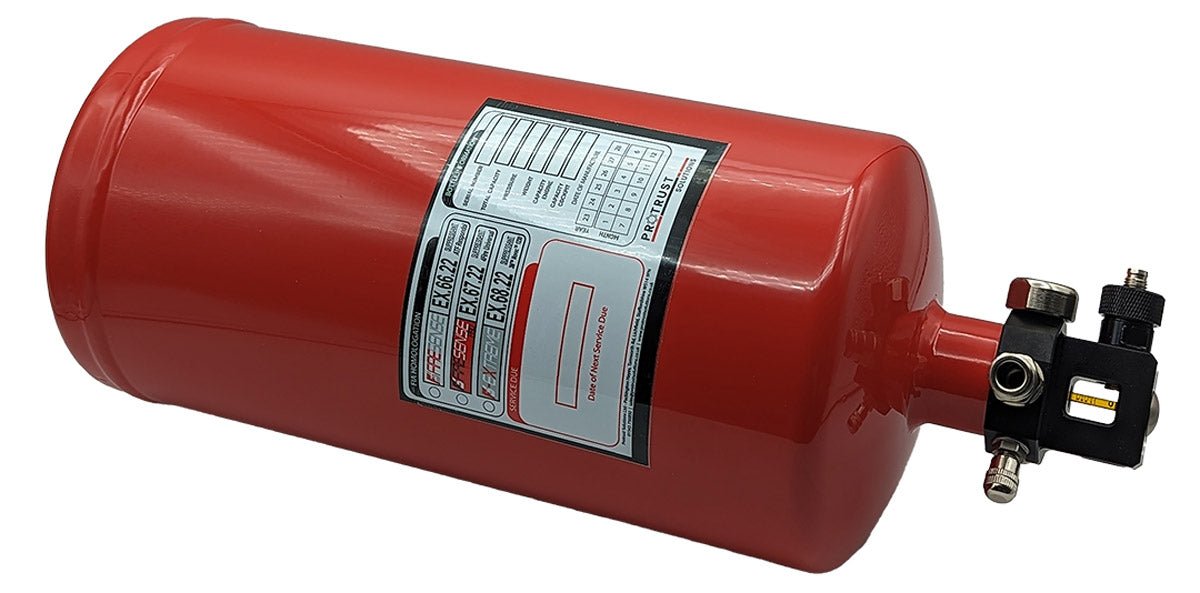

SKU: FIA23-E4S SPA Technique 4.0L AFFF FireSense Steel Electrical/Automatic Fire Suppression System

4.0 Ltr. ATF(AFFF-AR) Fluorine-Free, Steel Electrical/Automatic - FIA 2023 Fire Suppression System

View Manual Here - FIA23 AFFF User Manual

FIA 2023 approved ATF (Fluorine-Free) AFFF-AR (water-based foam - Alcohol Resistant) system comes complete with everything to install. Automatic activation with electrical override.

Automatic feature contains a thermal bulb rated at 175°F. If driver is unable to activate system, once the temperature reaches 175F at the bottle, it will discharge automatically.

Our self-contained electrical activation allows for the driver to deploy the system whenever they choose, without waiting for the automatic function.

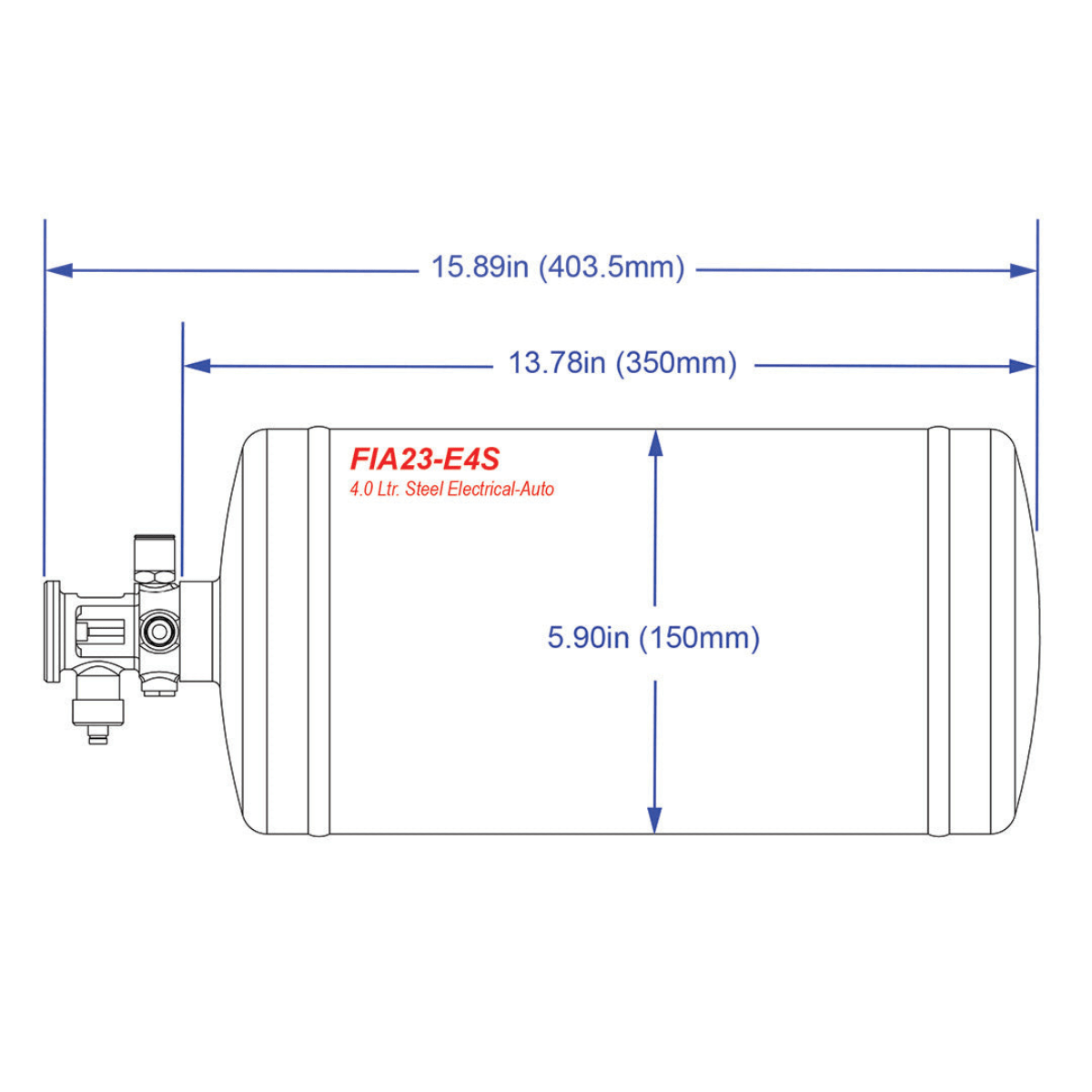

BOTTLE DIMENSIONS: 15.89"h x 5.9"dia.

FIA Homologation No. - EX.66.22

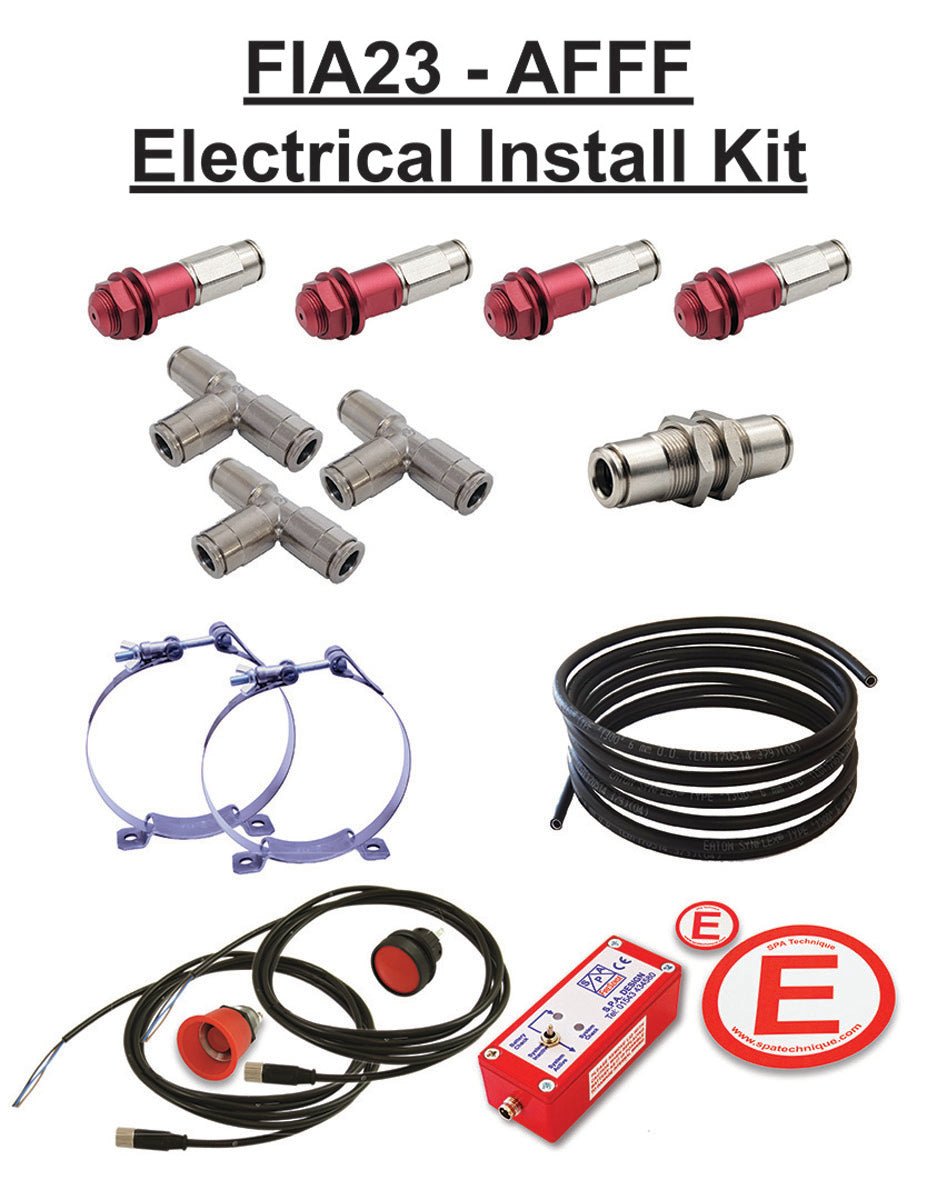

KIT INCLUDES:

• 4 x AFFF Nozzles (2x Engine, 2x Cockpit) - SKU SP 031
• 3 x 8mm T-Fittings - SKU SPAsfi 011
• 1 x 8mm Bulkhead Fitting - SPAsfi 012
• 20ft 8mm Decabon Tubing - SKU SP 032
• 2 x Bottle Mounts (w/FIA anti-torpedo tabs) - SPAT 126 / SKU SP 319
• 1 x Large 'E' Sticker - SKU SP 017
• 1 x Small 'E' Sticker - SKU SP 129
• 2 x Hirschmann Style Plug and Leads - SKU ELEC-001
• 1 x Internal Fire Button - SKU ELEC-002
• 1 x External Waterproof Fire Button - SKU ELEC-003
• 1 x Hirschmann Style Power Pack - SKU ELEC-004
